QT8-15D cement brick machine equipment


1.1 Use:

QT8-15D block forming machine developed and produced by our company

is a special equipment for the production of building blocks. The machine can use fly ash, slag or other industrial waste slag and river sand, gravel, cement and other materials, by replacing the mold to produce a variety of different specifications of hollow block, porous brick, curb, road brick and grass brick, tree brick, slope protection brick and other concrete products. Adding fabric structure can also produce layered products.


1.2 Structure

The main frame of QT8-15D block forming machine adopts gantry frame structure,

strong vibration resistance and good reliability. The design adopts hydraulic discharge mode of independent foundation, and the raw materials are released immediately. Network wave type swing fabric structure, fabric effect is good. The plug-in welding

mold is made of manganese steel carburizing and quenching, and it is not easy to change and wear when using 100,000 molds. QT8-15D block forming machine can be

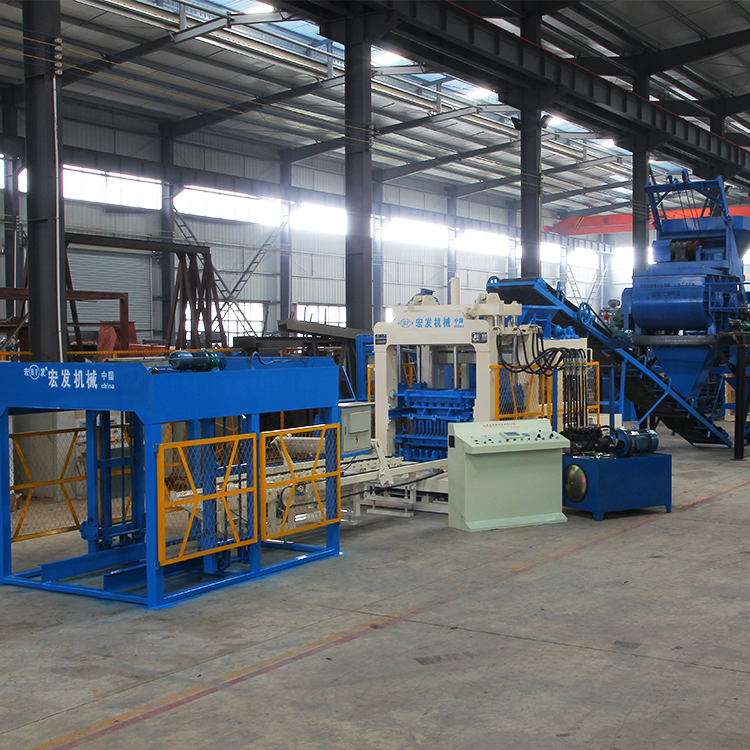

combined with PLD1200 batching machine, JS500 mixer, 8-meter belt conveyor,

and palletizer to form a simple production line.


1.3 Features:

1, the machine for mechanical, hydraulic, computer automatic control comprehensive technology equipment, with high efficiency, reasonable design, compact structure, simple operation, easy maintenance for the characteristics;

2, the block molding to mechanical vibration, hydraulic pressure as a supplement, vibration pressure to complete. The compressive strength of the block products produced can reach 15MPa(mpa) or more, with high compactness, good frost resistance and impermeability, excellent sound insulation, heat insulation and heat preservation performance, and accurate dimensions.

3, integrated oil circuit system, high life, low energy consumption design.

4, operation mode: with automatic, semi-automatic different operation mode, can ensure uninterrupted production.

5, variable frequency stepless speed regulation, to achieve a reasonable operating speed, accurate deceleration braking and positioning.

6, database system: intelligent service, can record, reset, save, file, warning, processing, print reports.

7, self-check function: failure can be automatically diagnosed

to ensure production safety.

8, measurement control system: high precision, fully automatic




The main composition and function of QT8-15D

automatic hydraulic brick machine equipment

1. Board conveyor

It is composed of pallet box, pallet fork, pallet frame, push cylinder and pallet frame. It is mainly used for storing pallet and transporting pallet according to cycle.

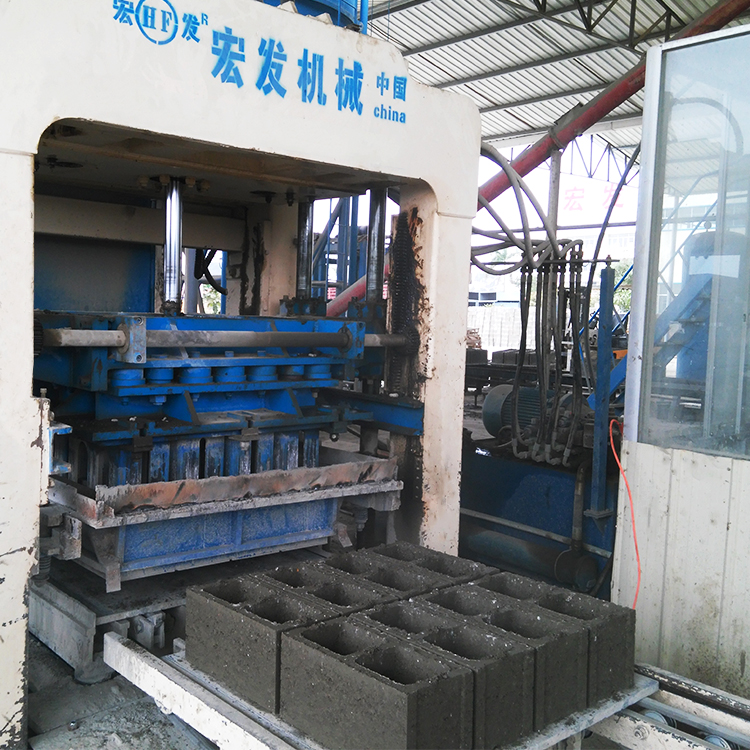

2. Forming machine

It is composed of main frame, distribution car, station shaft sliding sleeve, shaking table, mold, up and down synchronous mechanism, pushing cylinder, etc. It is mainly used for main material filling, molding, vibration, molding, demoulding, etc.

3, block conveyor

It is composed of conveyor frame, chain transmission mechanism, belt pulley transmission mechanism, horizontal guide wheel and other parts, mainly used for conveying finished blocks.

4. Hydraulic station

It is composed of fuel tank, motor, oil pump, filter, cooler, integrated block, hydraulic valve, etc., which mainly provides driving power source for each moving part. The hydraulic station uses N32 or N46 anti-wear hydraulic oil, and the filtration accuracy of the oil injected into the tank is not less than 20μm, and the unfiltered oil shall not be injected into the tank.

5, electrical control cabinet

(1) Control part

The control part is composed of PLC programmable controller, expansion module, touch screen man-machine interface, intermediate relay, AC contactor and other electrical

components, with manual and automatic operation modes to control the action of each process. Such as press head down, mold box up and down, main material car advance and retreat, pre-vibration, molding main vibration, stripping, plate advance

and retreat and other functions can achieve man-machine dialogue,

external adjustment of feed times and vibration time.

(2) Control part

The control part is composed of indicator light, control button, programmable intelligent operation panel, etc. Through the operation of the relevant electrical components of the control console, the current equipment status can be displayed, and the manual and automatic conversion can be easily realized. You can set or modify the related working parameters, and cut off the power supply in time when the device fails to ensure the safety of the human body and the device.



1. Main technical parameters


(1) Machine size: 7500×2100×3020 mm


(2), rated pressure: 21 Mpa


(3) Main vibration form: platform vibration


(4) Vibration frequency: 2800-4500 times/min


(5) Vibration acceleration: 15-20g


(6) Excitation force: 80kN


(7), plate size: 1020x900x25 mm


(8) Product height: 50-200mm


(9), molding cycle: 15-20 s


(10), the whole machine power: 41 kw


(11), the whole machine quality: 9000kg


(12) Main product specifications and output
