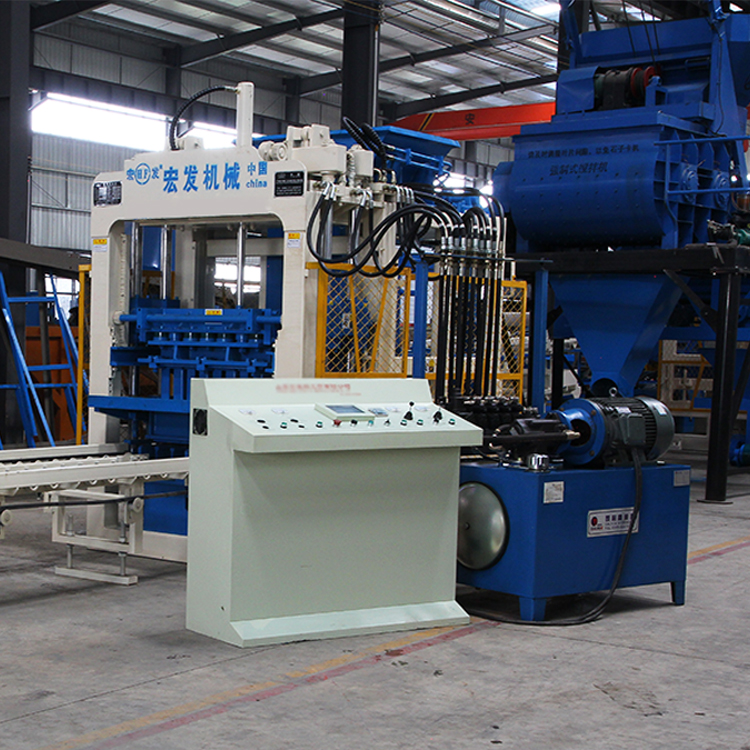

QT6-15D Cement brick machine

Productivity 001
Power 34kw
品牌 HongFa
18076531890
产品详情

QT6-15D cement brick machine


QT6-15D block forming machine developed and produced by our company

is a special equipment for the production of building blocks. The machine can use fly ash, slag or other industrial waste slag and river sand, gravel, cement and other materials, by replacing the mold to produce a variety of different specifications of hollow block, porous brick, curb, road brick and grass brick, tree brick, slope protection brick and other concrete products. Adding fabric structure can also produce layered products.

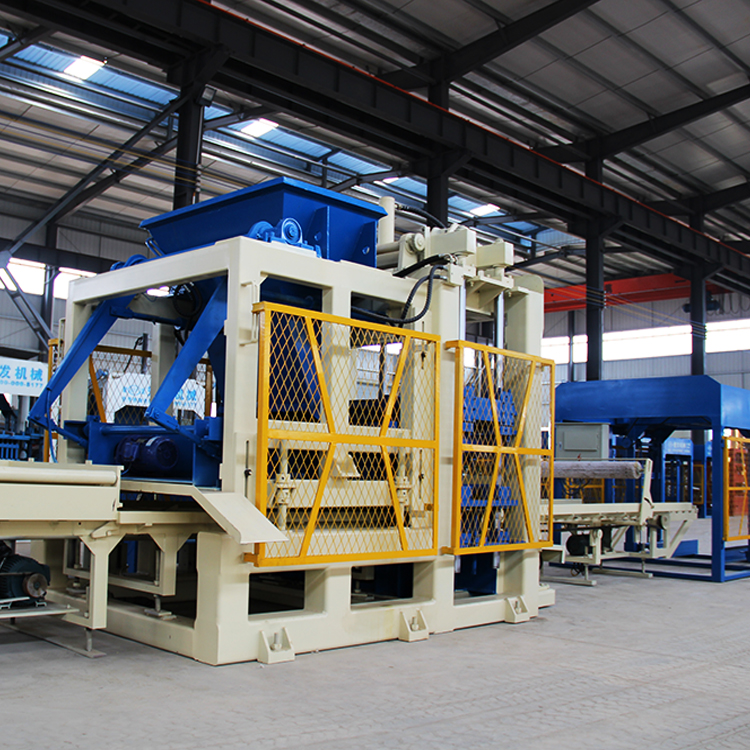

The main frame of QT6-15D block forming machine adopts gantry frame structure,

strong vibration resistance and good reliability. The design adopts hydraulic discharge mode of independent foundation, and the raw materials are released immediately. Mesh wave type swing fabric structure, fabric effect is good. The plug-in welding mold

is made of manganese steel carburizing and quenching, and it is not easy to change and wear when using 100,000 molds. QT6-15D block forming machine

can be combined with PLD1200 batching machine, JS500 mixer, 8 meters belt conveyor, and palletizer to form a simple production line.


QT6-15D automatic hydraulic brick machine features:


1, the machine for mechanical, hydraulic, computer automatic control comprehensive technology equipment, with high efficiency, reasonable design, compact structure, simple operation, easy maintenance for the characteristics.


2, the block molding to mechanical vibration, hydraulic pressure as a supplement, vibration pressure to complete. The compressive strength of the block products produced can reach 15MPa(mpa) or more, with high compactness, good frost resistance and impermeability, excellent sound insulation, heat insulation and heat preservation performance, and accurate dimensions.


3, integrated oil circuit system, high life, low energy consumption design.


4, operation mode: with automatic, semi-automatic different operation mode, can ensure uninterrupted production.


5, variable frequency stepless speed regulation, to achieve a reasonable operating speed, accurate deceleration braking and positioning.


6, database system: intelligent service, can record, reset, save, file, warning, processing, print reports.


7, self-check function: failure can be automatically diagnosed to ensure

production safety.


8, measurement control system: high precision, automatic centralized control system.


Main technical parameters:


(1) Machine size: 7160×2000×2800 mm


(2), rated pressure: 21 Mpa


(3) Main vibration form: platform vibration


(4) Vibration frequency: 2800-4500 times/min


(5) Vibration acceleration: 15-20g


(6) Excitation force: 60kN


(7), plate size: 8800x680x25 mm


(8) Product height: 50-200mm


(9), molding cycle: 15-20 s


(10), the whole machine power: 34 kw


(11), the whole machine quality: 7000kg


(12) Main product specifications and output
